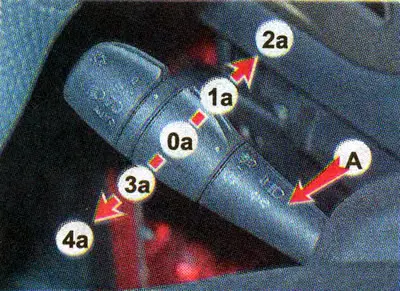

Turn signal switch (moving lever A up and down):
0a - direction indicators off;
1a - right turn signal is on (non-fixed position);
2a - right turn signal is on (fixed position);
For - left turn signal is on (non-fixed position);
4a - left turn signal is on (fixed position).

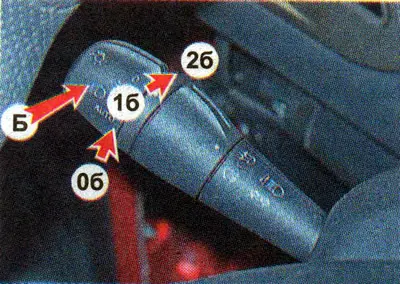

Exterior lighting and headlight switch (rotary tip B):
0b (OFF) - outdoor lighting and headlights are turned off (possible short-term switching on of the high beam of the headlights — non-fixed position of switch 2b);
1b
- outdoor lighting is on (side light, number plate light) and instrument panel lighting;
2b

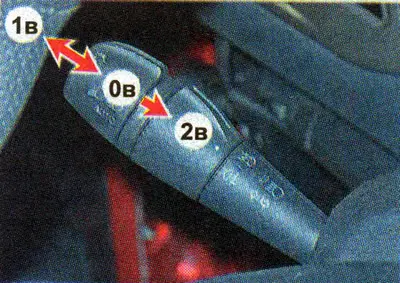

— exterior lighting is on, low beam (switch position 0v) or distant (switch position 1v) headlights. Note. Depending on the configuration, some vehicles may have another position of switch 36 (AUTO) - depending on the road illumination, the exterior lighting, low beam headlights and instrument lighting are automatically switched on.Headlight switch (moving the lever forward and backward):
0v - low beam on (switch B for external lighting and headlights must be in position 3b);
1v - high beam on (switch B for external lighting and headlights must be in position 3b);
2v - high beam on (non-fixed position), regardless of the position of switch B for external lighting and headlights.

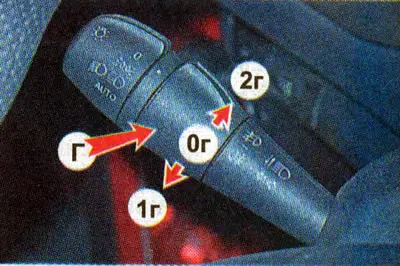

Front fog light and rear fog light switch (swivel ring G):
0g (OFF) - front fog lights and rear fog light are off;
1g
— the front fog lights are on, the switch for external lighting and headlights must be in any position except 0a;
Note: Depending on the configuration, some vehicles may have another switch position.
2g
- front fog lights and rear fog light are on (non-fixed position), the switch for external lighting and headlights must be in any position except Oa.The right steering column switch combines the switches for the windshield wipers and windshield washers.

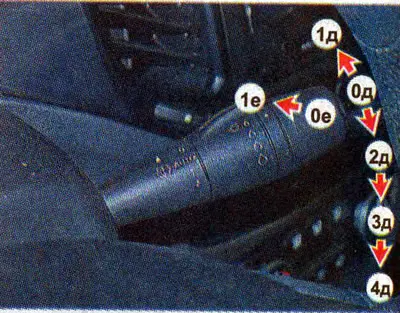

Front windshield wiper mode switch (moving lever D up and down):
0d (OFF) - windshield wiper is off;
1d (
) - the windshield wiper is on for one cycle (non-fixed position);
2d (AUTO) — intermittent or automatic windshield wiper mode is on*;
3d (1) — the first speed of the windshield wiper is on;
4d (2) — the second speed of the windshield wiper is on.
Windscreen washer switch (moving the lever forward or backward):
0e - windshield washer off;
1st (
) — windshield washer is on (non-fixed position);

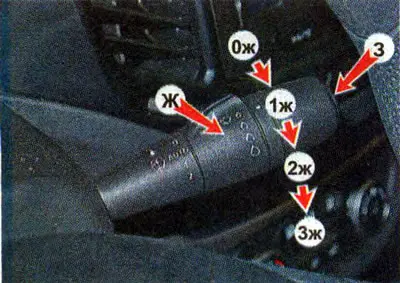

Windscreen wiper control (rotary ring W):
0j → 3j-automatically changes the sensitivity of the rain sensor; in intermittent mode increases the pauses between wiper activations.
3 — on-board mode switch (route) computer and information display.
