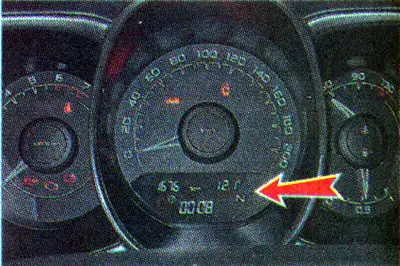

The information display on the instrument panel displays information about the vehicle's operating parameters (mileage, instantaneous and average fuel consumption, automatic transmission operating mode, etc., depending on the selected settings), various warnings, outside temperature and current time.

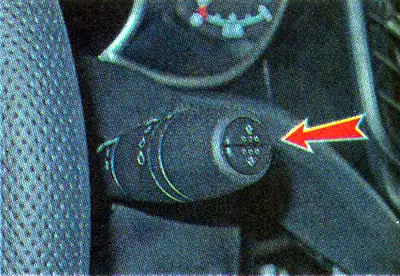

Switching between modes on the display occurs with a short press, less than one second, of the button located at the end of the right steering column switch.
The following information can be displayed on the display:
- Outside air temperature and voltage in the vehicle's battery network;
- Trip meters 1 and 2 - mileage since last reset;
- Trip Time - Shows the total amount of time the engine has been running since the last reset;
- Current and average fuel consumption (l/100 km) is an average value calculated based on the vehicle's mileage since the last reset of the counter and the volume of fuel consumed during this period;
- Estimated range (km) on fuel remaining in the tank is an average value calculated based on the amount of fuel in the tank and average fuel consumption. When the fuel level drops to the minimum level, the estimated range is automatically displayed and starts flashing;
Warning! The estimated range is an approximate value! When the electronic unit of the instrument panel calculates that it is less than 50 km, the display will show the indicator After this, the fuel may run out at any time - you must refuel immediately!
- Average vehicle speed (km/h) - the value is calculated based on the mileage and engine operating time since the last reset;
- Operating mode of the automated gearbox (for a car with automatic transmission).
- Arrows ▲ and ▼, indicating the need to change gears (for a car with manual transmission);
- Cruise control system operating modes;

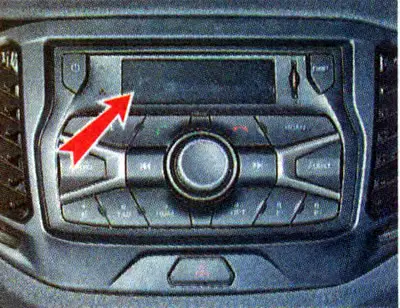

- The audio system information display shows information about its operation and the current time.

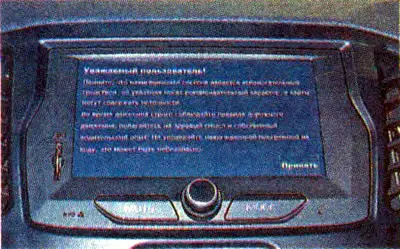

Depending on the configuration, the car may be equipped with a multi-system with a touch screen.

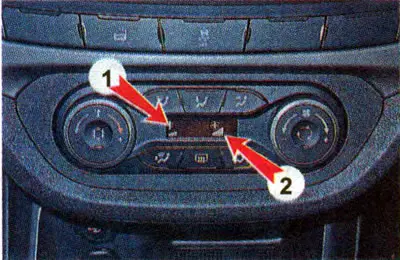

The information display of the climate control unit with automatic operation mode shows the set temperature in the passenger compartment 1, the enabled air flow distribution modes and the operating mode of the electric fan 2.
