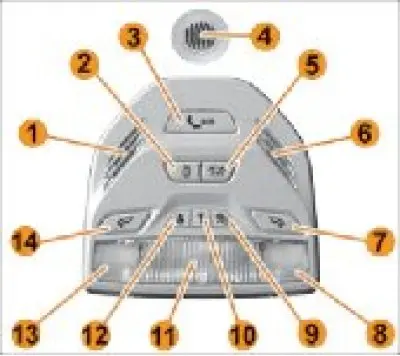

Figure 7.1. Interior lighting unit:
1 – Location of the microphone for the emergency services call system.
2 – Key for switching the general lighting section into the "On with door open" mode.
3 – Emergency services call key.
4 – Microphone.
5 – Key for switching the general interior lighting section to the "On" mode.
6 – Location area of the emergency services call system loudspeaker.
7 – Key for switching on individual passenger seat lighting.
8 – Individual lighting section for the front passenger seat.
9 – Front passenger airbag deactivation indicator.
10 – Emergency services call system status indicator.
11 – General lighting section.
12 – Driver seat belt indicator.
13 – Individual driver's seat lighting section.
14 – Key for switching on individual driver's seat lighting.
When you press key 5 (Figure 7.1) the general lighting mode is switched on. Pressing key 2 turns on the "On when door is open" mode.
If both keys are pressed, key 5 has priority. Each section of the individual lighting is switched on by the corresponding key with the pictogram for the driver 14 or for the front passenger 7.
Switching between the general lighting modes is carried out using keys that have a fixed position in the "On" mode.
Switching between individual lighting modes occurs by pressing the corresponding key again (the key position in the "On" mode is not fixed).

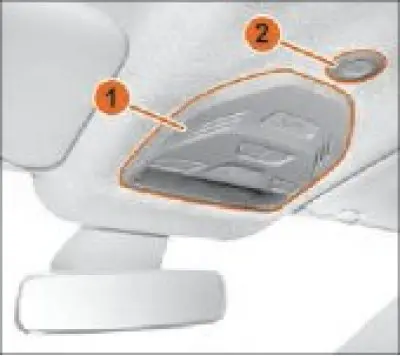

Figure 7.2. General view of the interior lighting unit: 1 – Interior lighting unit. 2 – Microphone.
Signaling devices and indicators in the interior lighting unit:
- front passenger airbag off indicator, signal color yellow;
- front passenger seat belt warning light, red;
- the emergency services call system status indicator is red. Lights up for 5 seconds each time the ignition is turned on, then goes out. The indicator also lights up if there is a malfunction in the emergency services call system.
Additional lighting

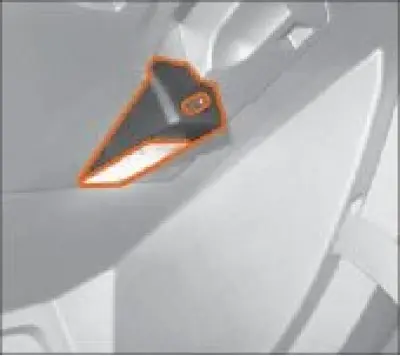

Glove compartment light (Figure 7.3) turns on when the glove compartment lid is opened.
Figure 7.3. Glove compartment light

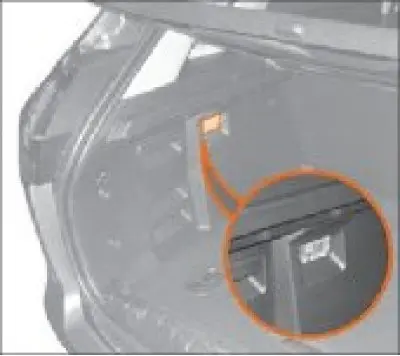

When any door is opened, the luggage compartment light turns on (Figure 7.4).
Figure 7.4. Luggage compartment light
