Removal and installation of floor tunnel linings (Priora 2170)

  • Main
  • Priora
  • Priora 1
  • Body and interior
  • Interior (internal elements)
  • Removal and installation of floor tunnel linings
0
You will need: a 10 mm wrench, flat-head and Phillips-head screwdrivers.

1. Disconnect the wire from the negative terminal of the battery.

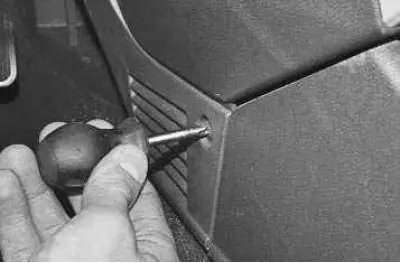

2. Remove the screws securing the left and right screens…


2. Remove the screws securing the left and right screens…

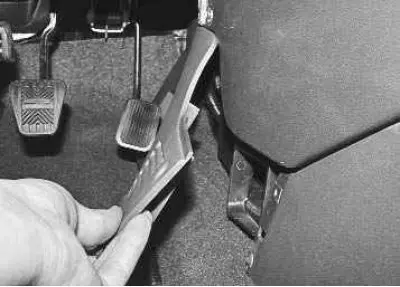

3. …and remove the screens.


3. …and remove the screens.

4. Remove the two screws securing the upper trim at the front (left and right).


4. Remove the two screws securing the upper trim at the front (left and right).

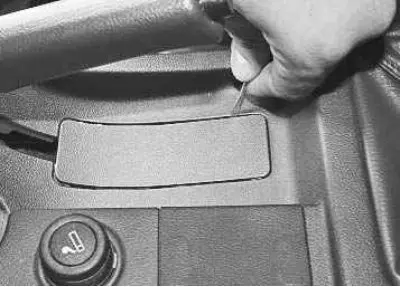

5. Pry it up with a screwdriver…


5. Pry it up with a screwdriver…

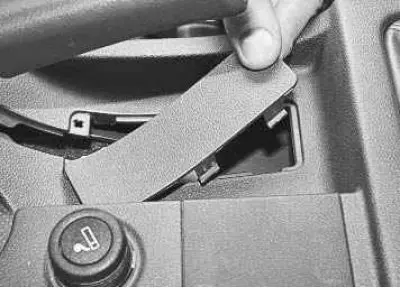

6. …and remove the plug.


6. …and remove the plug.

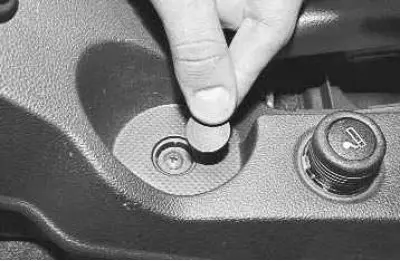

7. Remove the plug in the center of the recess for the glass…


7. Remove the plug in the center of the recess for the glass…

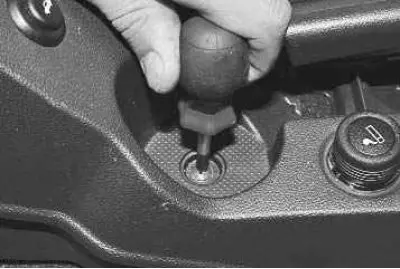

8. …and unscrew the screw securing the upper trim.


8. …and unscrew the screw securing the upper trim.

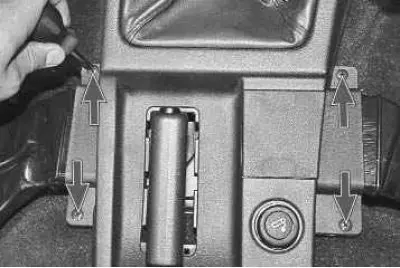

9. Remove the four screws securing the top trim to the floor.


9. Remove the four screws securing the top trim to the floor.



10. Remove the drawer and container lining.

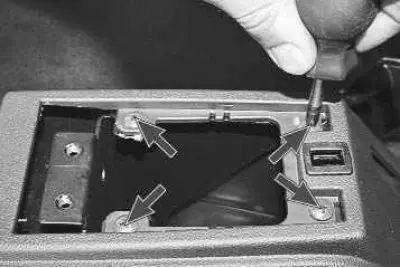

11. Remove the four screws securing the upper trim to the bracket.


11. Remove the four screws securing the upper trim to the bracket.

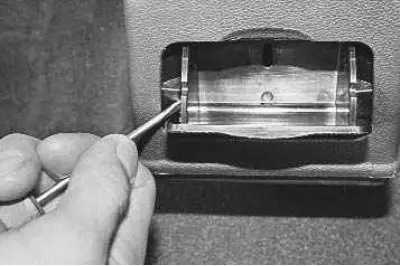

12. Pry it up with a screwdriver…


12. Pry it up with a screwdriver…

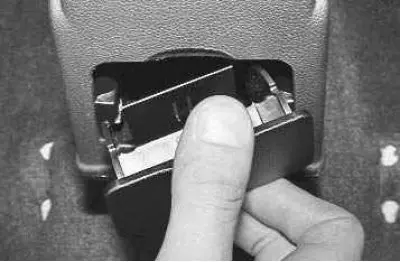

13. …and remove the rear ashtray.


13. …and remove the rear ashtray.

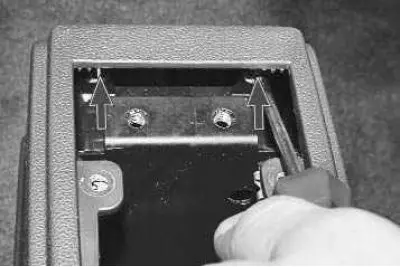

14. Remove the two screws securing the rear ashtray housing.


14. Remove the two screws securing the rear ashtray housing.

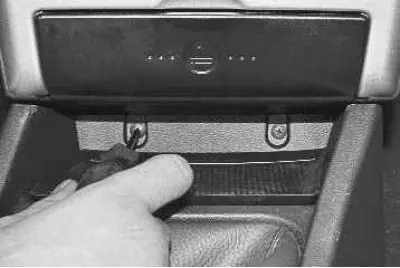

15. Remove the two screws securing the upper floor tunnel trim to the instrument panel.


15. Remove the two screws securing the upper floor tunnel trim to the instrument panel.

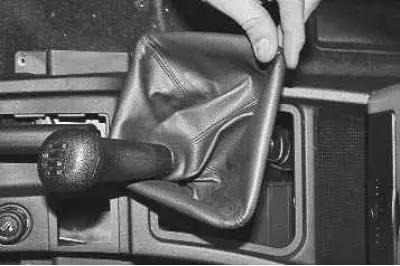

16. Remove the gear shift lever boot from the upper trim.


16. Remove the gear shift lever boot from the upper trim.

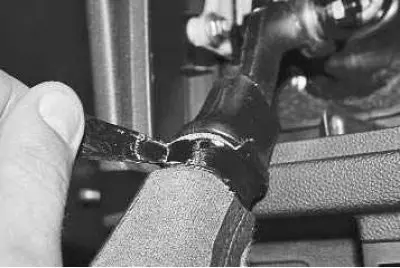

17. Turn the cover inside out and unwind the adhesive tape securing the cover to the gear shift…


17. Turn the cover inside out and unwind the adhesive tape securing the cover to the gear shift lever.

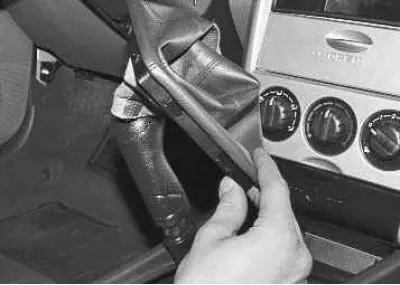

18. Remove the gear shift lever cover.


18. Remove the gear shift lever cover.



19. Disconnect the wiring harness connectors from the trunk release button and from the cigarette lighter..

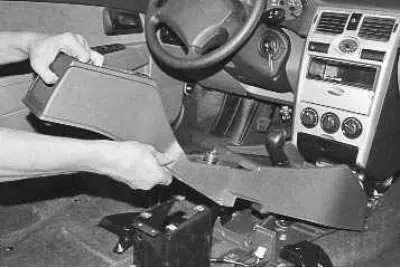

20. …and remove the top floor tunnel lining.


20. …and remove the top floor tunnel lining.

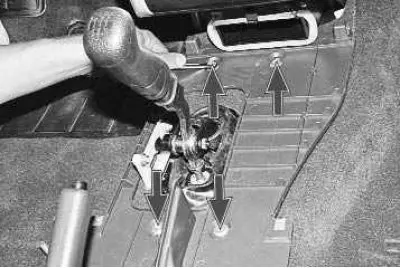

21. Unscrew the four nuts securing the lower trim to the floor…


21. Unscrew the four nuts securing the lower trim to the floor…

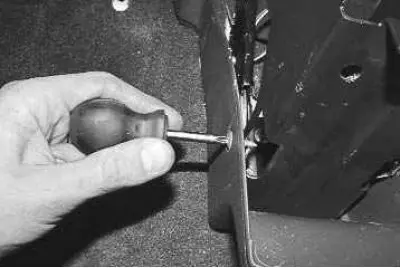

22. …and two screws (left and right) fastening the cladding to the bracket.


22. …and two screws (left and right) fastening the cladding to the bracket.

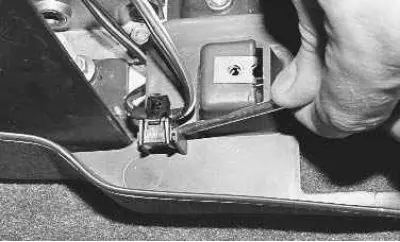

23. Pry with a screwdriver…


23. Pry with a screwdriver…

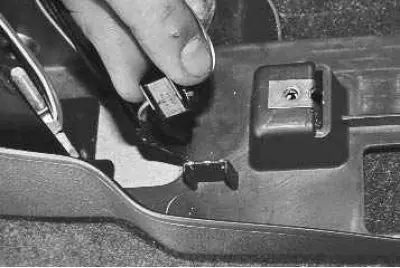

24. …and remove the wiring harness holder from the lower trim.


24. …and remove the wiring harness holder from the lower trim.

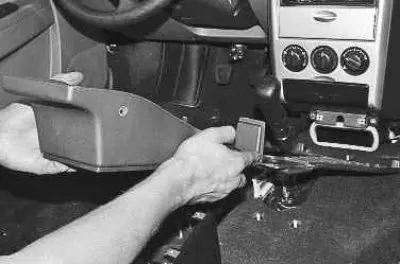

25. Remove the lower floor tunnel lining.


25. Remove the lower floor tunnel lining.

26. Install the removed parts in the reverse order of removal.
