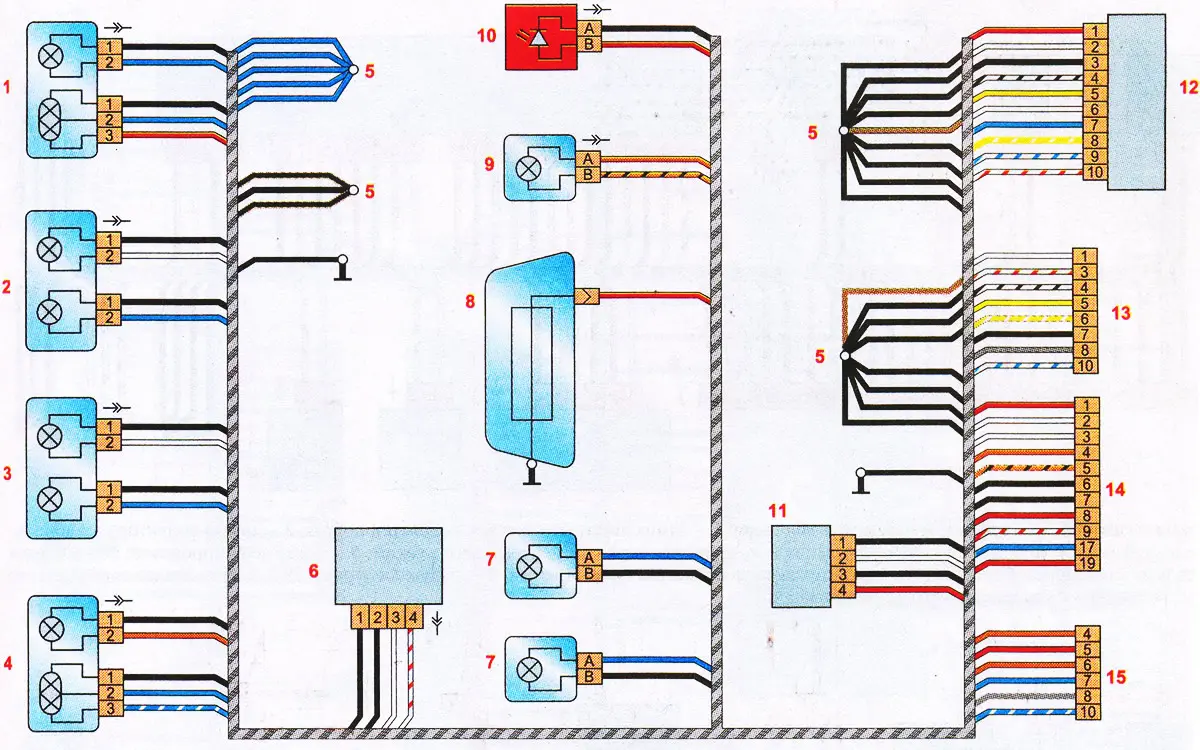

Rear auxiliary wiring harness connection diagram: 1 - outer section of the rear left light; 2 - inner section of the rear left light; 3 - inner section of the rear right light; 4 - outer section of the rear right light; 5 - connecting wires; 6 - trunk lid lock; 7 - License plate light; 8 - rear window heating element; 9 - luggage compartment light; 10 - additional brake signal; I - rear view camera; 12 - Parking sensor control unit; 13 - connector block for connection to the rear bumper harness; 14 and 15 - connecting block for connection to the rear harness
(Data obtained from the website: «LadaMan»)
